DPN-6608Project
OLT with 8 GPON SFP Downlink, and 4-Port 1G/SFP & 2-Port 10G/SFP+ Uplink, L2 G-PON Switch
Description
The G-PON service delivers up to 2.54Gbps speed over optical fiber wiring, it enables next-generation simultaneous voice, video and data services including high-speed Internet access, video streaming. DPN-6608 is a cost-effective, easy-to-deploy technology ideal for multiunit building (MxU), like department, hotel, etc.
The OLT provides the function to convert the GPON (Giga-bit Passive Optical Network) interface conforming to ITU-984.x to trunk interface. The OLT provides 4 1G/SFP & 2 10G/SFP+ interfaces as the trunk interface, and supported L2 S/W function. One OLT support up to 8 port Optical SFP modules and each GPON interface accommodates up to 64 ONT through the optical splitter.
General features
Management port
• RJ-45 type RS-232 console port
• RJ-45 out-of-band port
Up-link Gigabit Ethernet Ports
• 4 1G combo mini-GBIC (SFP) Gigabit Ethernet ports
• 2 10G combo mini-GBIC (SFP+) Gigabit Ethernet ports
• 2 10/100/1000BASE-T ports
• Fully compliant with IEEE802.3
• Fully compliant with IEEE802.3u
• Fully compliant with IEEE802.3z
• Fully compliant with IEEE802.3ab
• Support Full Duplex operations
• IEEE 802.3x compliant Flow Control support for full-duplex
Down-link G-PON OLT Ports
• 8 SFP SC type OLT ports
• Fully compliant with ITU-984.2
• Each OLT port support up to 64 ONTs
• Up to 2.54/1.25Gbps speed for both DS/US
• Cable: Single Mode Fiber cable
• Upstream (ONT->OLT) wavelength: 1310nm
• Downstream (OLT->ONT) wavelength: 1490nm
Software Features
Basic
• Auto Discovery/ Grant Allocation/ Ranging/ Report Handling
• Alarm Report (Dying Gasp/ Remote link down/ Temperature abnormal)
• OAM Information
• Downstream bandwidth control by policer
• Upstream bandwidth control by DBA
• Remote diagnostic (Loop back/ Ping) 8
• Peer to peer management (Access control/ traffic limitation)
QoS
• Number of Queues per Port: 8 queues
• 802.1p support
• Port rate limit with the ingress shaping
• Strict Priority and WDR
L2 Features
• 802.1Q VLAN(4K VLAN)
• Double-tagging 802.1ad
• Trunk (IEEE802.3ad (static/dynamic)) (for uplink ports only)
• Multicast VLAN
Security
• MAC Authentication
Management
• ACL
• Telnet
• SYSLOG
• SNMP v1, v2c
• Command Line Interface (CLI)
• RTC
• TFTP Client
• TFTP
• Web UI
Physical Parameters
Power Supply
• Support optional external Redundant Power Supply: DPS-500
• Power consumption: Max. 80 W
Dimension
• Width – 441.0mm
• Height – 66.0mm (1U)
• Depth – 430.0mm
Operation temperature
• 0° to 45°C
Storage temperature
• -40° to 70°C
Humidity
• 5% to 95% non-condensing
EMI Certification
• CE
Safety Certification
• CE +VCCI
Certificates
Order info
DPN-6608 OLT with 8 GPON SFP Downlink, and 4-Port 1G/SFP & 2-Port 10G/SFP+ Uplink, L2 G-PON Switch

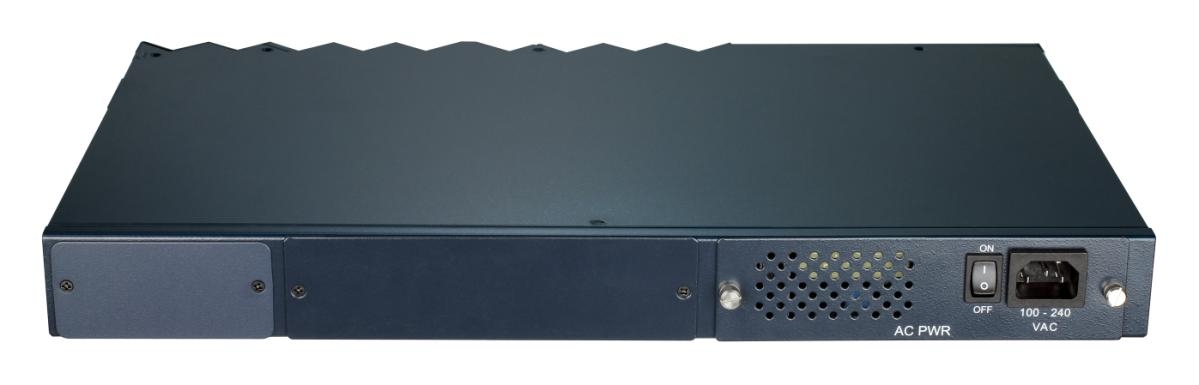

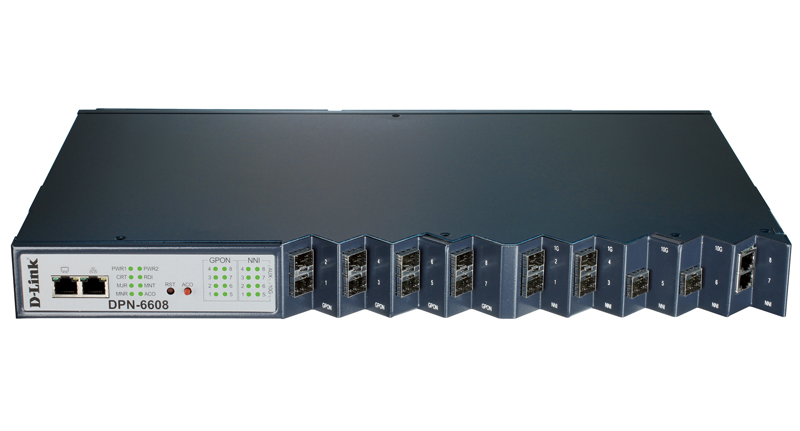

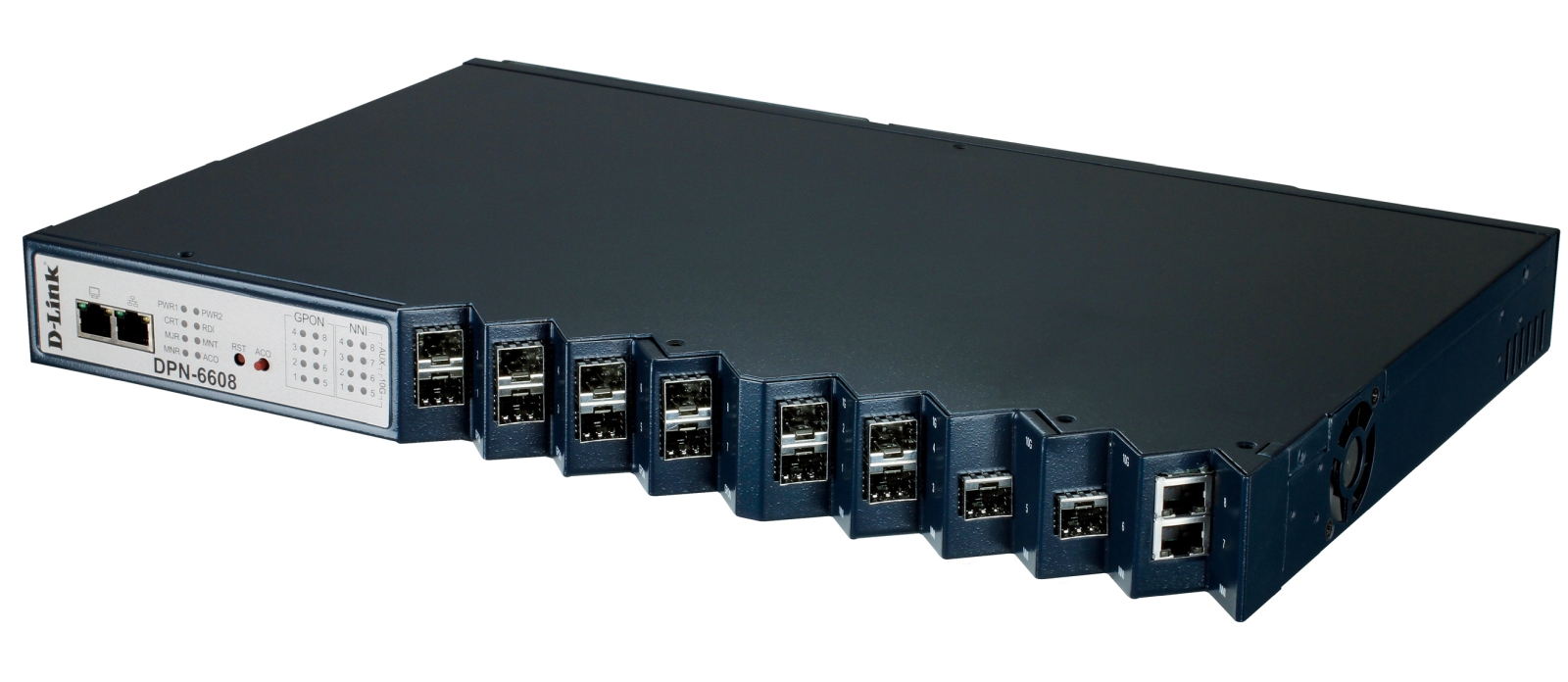

Pictures
DPN-6608/A
